Automatic powder coating plant

Demonstration of several plants in videos



Auto. plastic coating booth

  • Powder Center
  • Transfer pump
  • Reciprocator
  • Automatic Spray Guns
  • Cyclone separator
  • Recovery




Stations Coating plant

  • Drying oven
  • Pretreatment
  • Plastic cabin
  • Cyclone separator
  • Filter group air recovery
  • Curin oven
  • Control unit







Semi-automatic efficient

  • Procedure in circle system, efficient
  • Therefore no fiddling with trusses
  • Saves time increases output
  • Ofenbeschickung
  • Transfer table moves crosswise motorized
  • Powder center for fast color changes

Requires less installation space

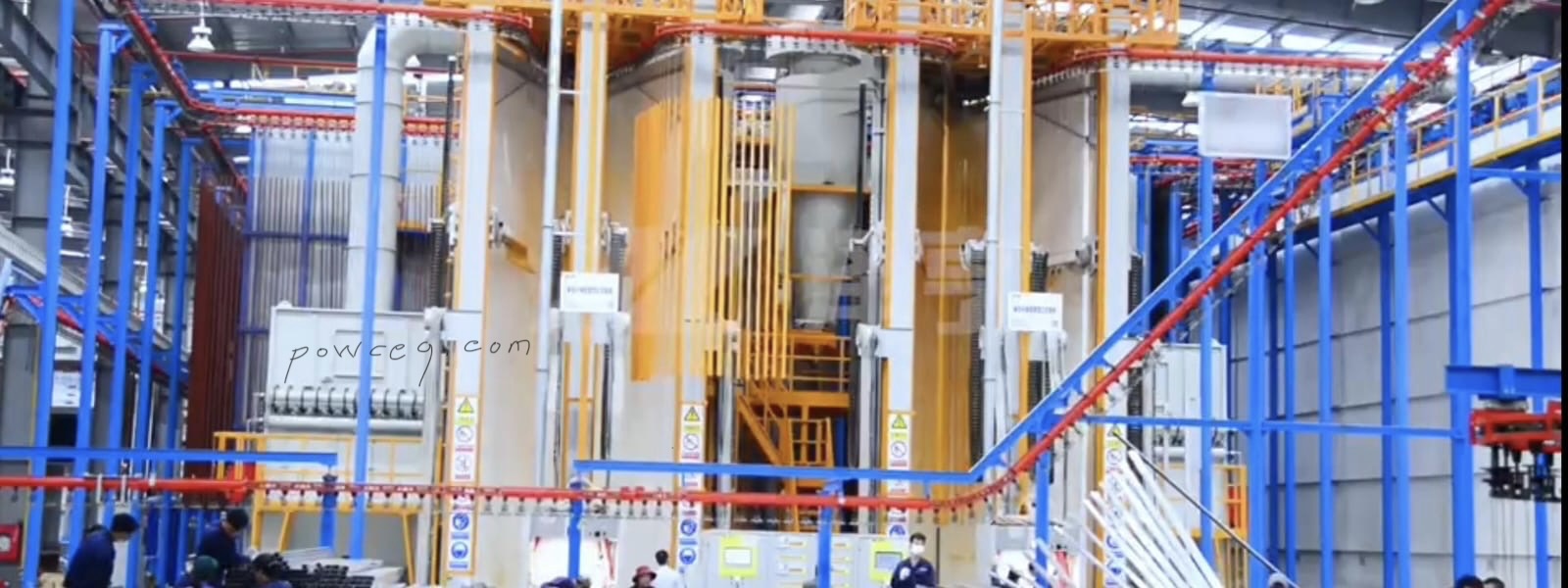

Mega coating line

  • In total about 1km long
  • Power & Free
  • Traversen
  • Reciprocators

Heizkörper KTL + Pulverbeschichtung







Manual + automatic

  • 2D-Scanner at entrance
  • Pretreatment in 5-stages
  • Control unit
  • Powder center

Complicated workpieces are additionally coated manually







Manual both sides coating

  • 2x Powder equipment with carton vibrating table
  • Chain conveyor for filter cabin
  • Collection container for recovery
  • Eelectric powder oven with trolley

Small and compact, requires only 10x5 m space













Dynamic 3D Powder Coating







Videos

Solutions for powder coating

Small to gigantic - 1 meter to 1km coating lines delivered to 83 countries

47 active partners worldwide
